Rotary Dampers
Imaginative engineering at its best provides enhanced safety and non-impact, shock-free motion control
These are our proprietary rotary dampers. They are characterized by their ability to demonstrate high torque, despite being so compact. These are mechanism components that can meet demands such as ensuring safety, buffering and impact, and adding a high-end, luxurious feel to your product. Both finite and infinite angle types are available, depending on your needs.
This unique product was engineered by TOK, taking advantage of TOK’s wide array of technologies and systems.
TOK dampers are highly suitable where non-impact, noise free, controlled motion is required. While torque is the primary consideration when specifying a TOK damper, our products cover a wide range of design specifications. Two types of standard dampers are available: rotary and uni-directional.
Please contact us to assist you in the designing, engineering, and manufacturing of your specific damper application. Note: Please review the operational conditions stated in the TOK catalogue when choosing and operating TOK products
Rotary dampers provide a full range of motion where low noise and smooth motion is desired.
Applications
・ Toilet seat/cover and Shower Door hinges
・ Funitures, Office Desk Drawers, Kitchen Cabinets, and Sliding Doors
・ Refrigerators, Washers/Dryers', and other Home Appliances
・ Piano Covers, Vending Machines Pick up door, Air Filter Covers, and OA printers
Partial rotation angle damper

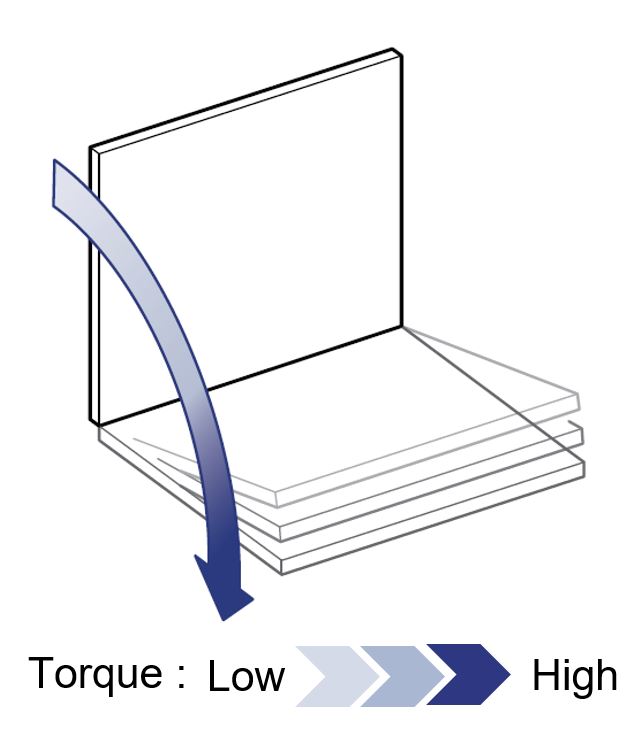

Horizontal use type
| TOK Series | Product Image | Torque Size | Dimension | Opening Angle | Direction | CAD Download | 【N･m】 | 【lbf･in】 | 【mm】 | 【in】 | 【°】 |
|---|---|---|---|---|---|---|---|---|

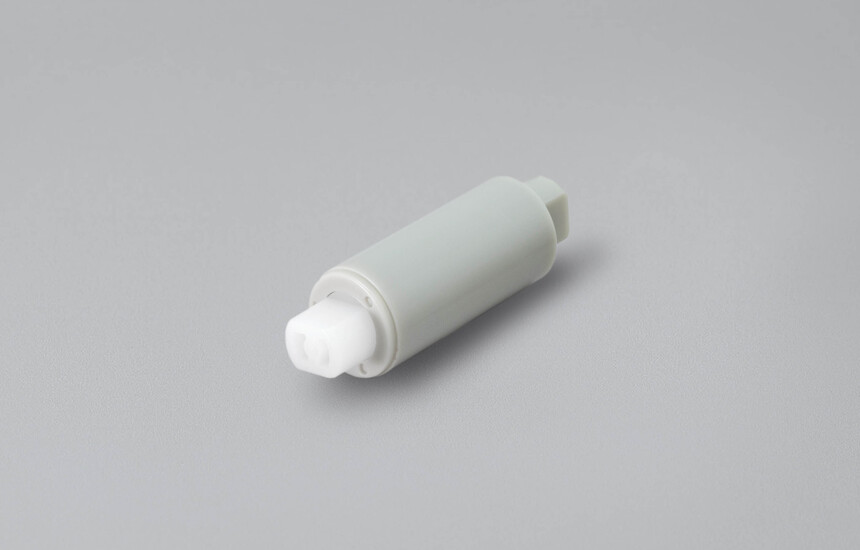

| TD73 |  |
0.05 to 0.3 | 0.44 to 2.67 | φ11 | φ0.433 | 110 | CW or CCW |  |

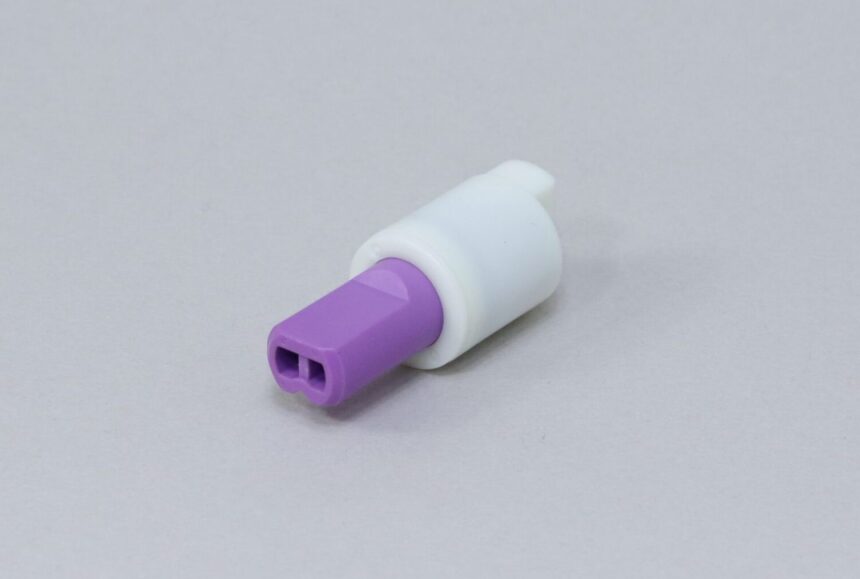

| TD154 |  |
0.4 | 3.54 | φ18 | φ0.709 | 290 | CW | |

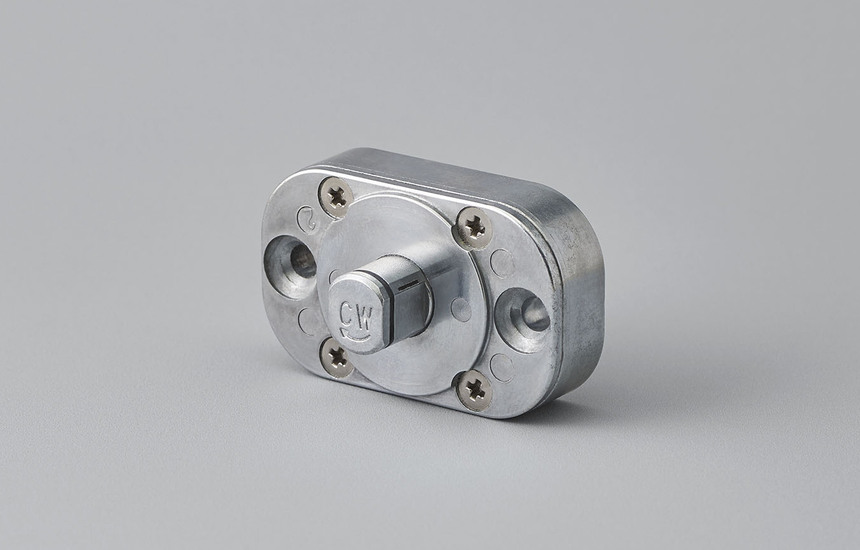

| TD60 |  |
0.5 to 2.0 | 4.34 to 17.35 | 11.9 wide | 0.469 wide | 110 | CW or CCW | |

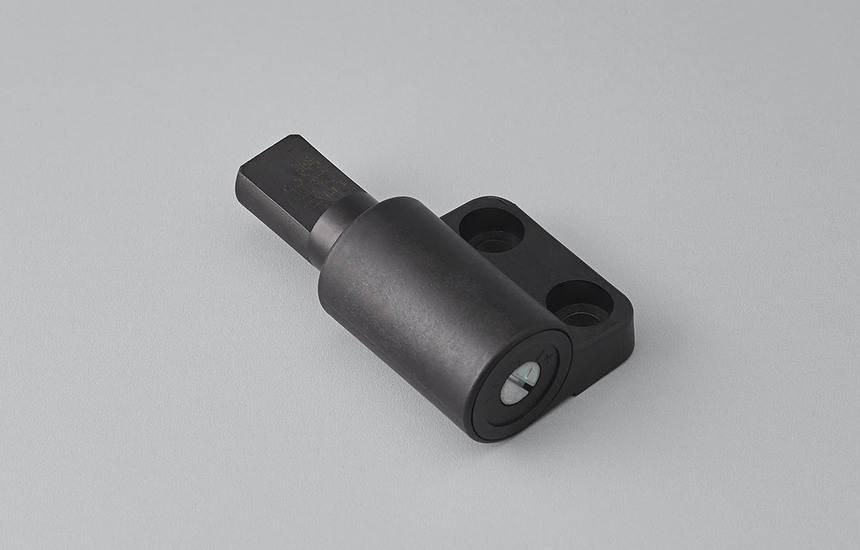

| TD27/28 |  |
0.5 to 2.0 | 4.34 to 17.35 | φ22 | φ0.866 | 110 | CW or CCW | |

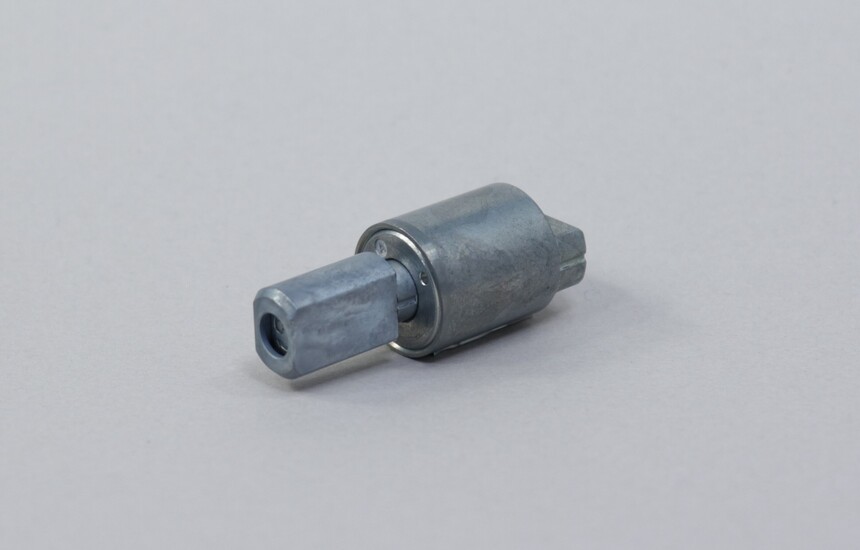

| TD159 |  |
0.7 | 6.2 | φ18 | φ0.709 | 280 | CW |
|

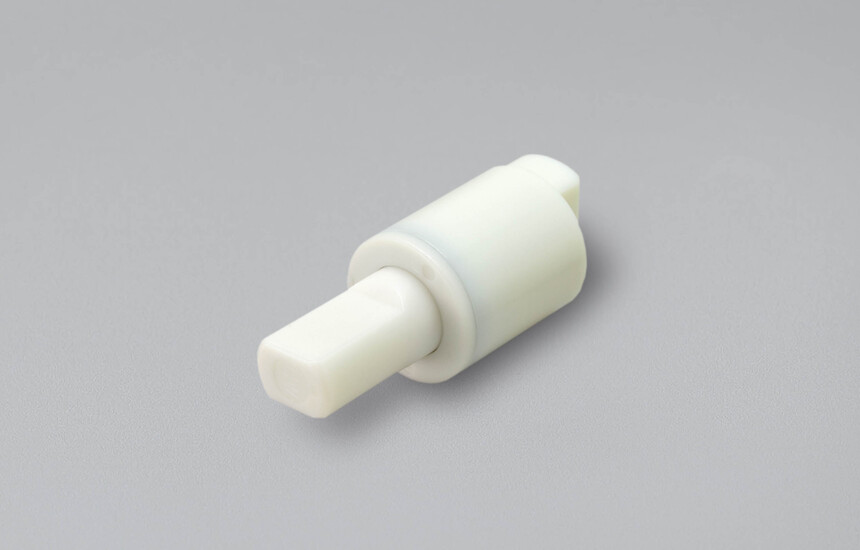

| TD54 |  |
0.8 to 2.0 | 6.90 to 17.35 | φ20 | φ0.787 | 110 | CW or CCW | |

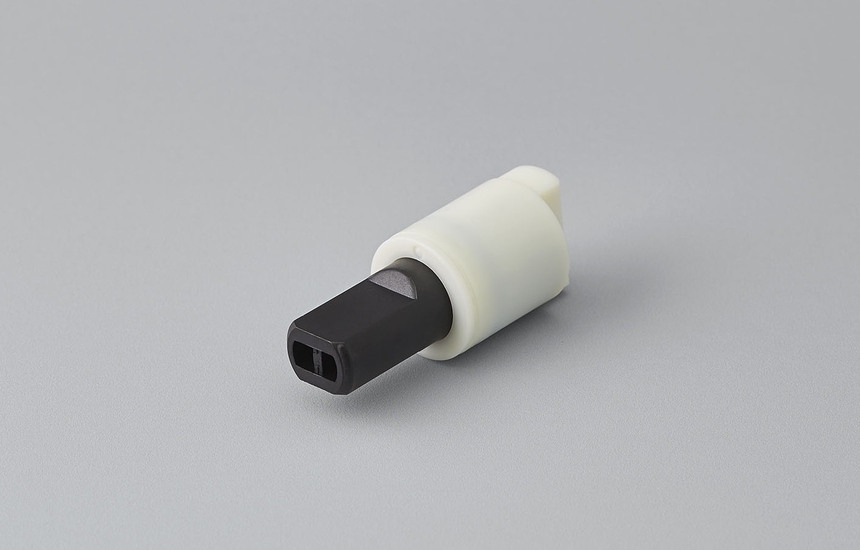

| TD99 Horizontal |  |
1.0 to 2.0 | 8.67 to 17.35 | φ18 | φ0.709 | 110 | CW or CCW | |

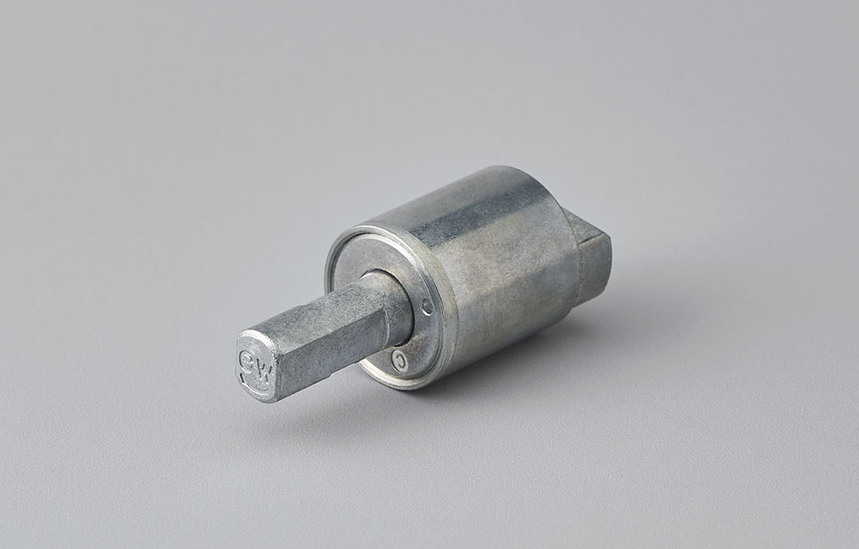

| TD56 |  |
1.0 to 3.0 | 8.67 to 26.02 | φ18 | φ0.709 | 110 | CW or CCW | |

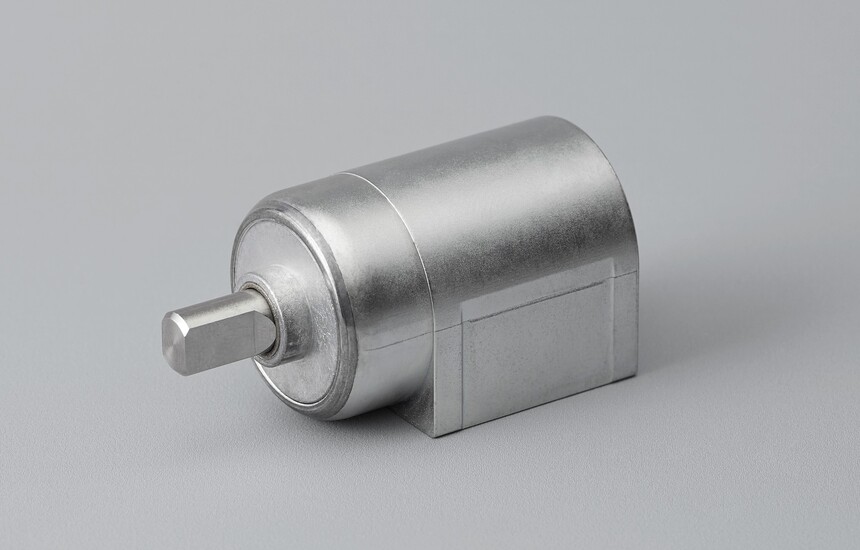

| SR3 |  |
1.0 | 8.85 | (φ22) | (φ0.866) | 120 | CW or CCW | |

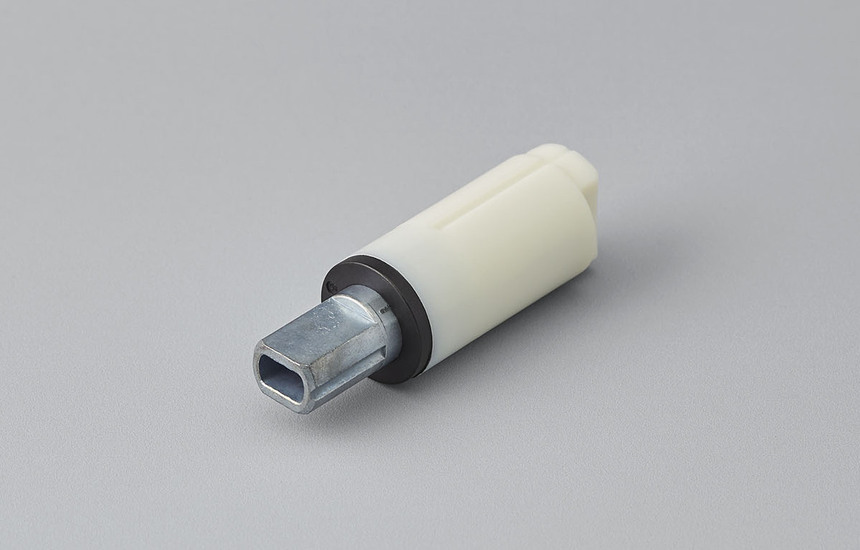

| TD100 |  |
1.0 to 3.0 | 8.67 to 26.55 | φ16 | φ0.630 | 110 | CW or CCW | |
| TD112 |  |
1.5 to 3.0 | 13.28 to 26.55 | φ18 | φ0.709 | 110 | CW or CCW | |

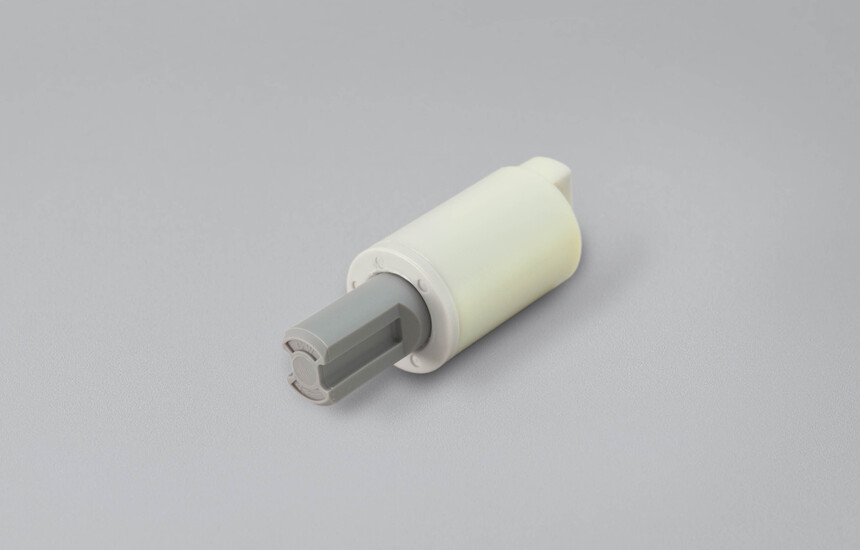

| TD118 |  |
1.5 to 3.5 | 13.28 to 30.98 | φ19.8 | φ0.780 | 110 | CW or CCW | |

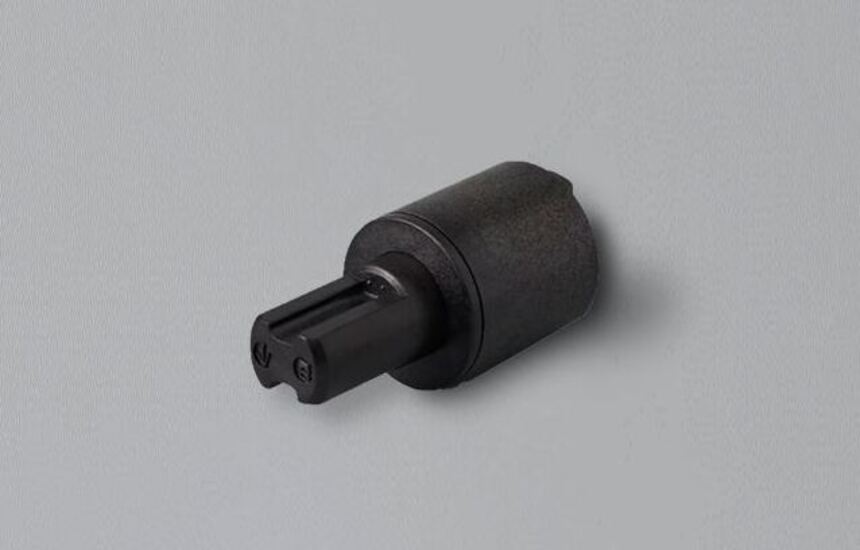

| TD69 |  |
1.5 to 4.0 | 13.28 to 35.40 | φ20 | φ0.787 | 110 | CW or CCW | |

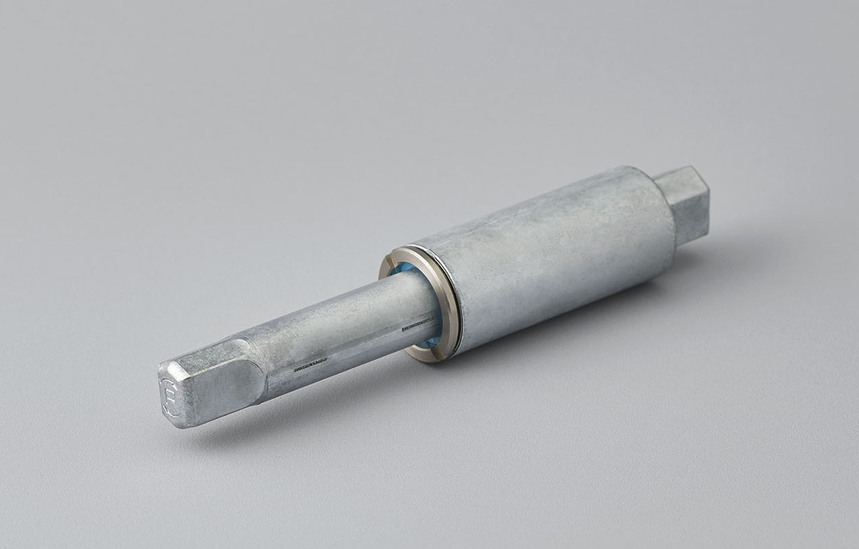

| TD22 |  |
2.5 to 3.9 | 21.68 to 34.70 | φ16.2 | φ0.638 | 110 | CW or CCW | |

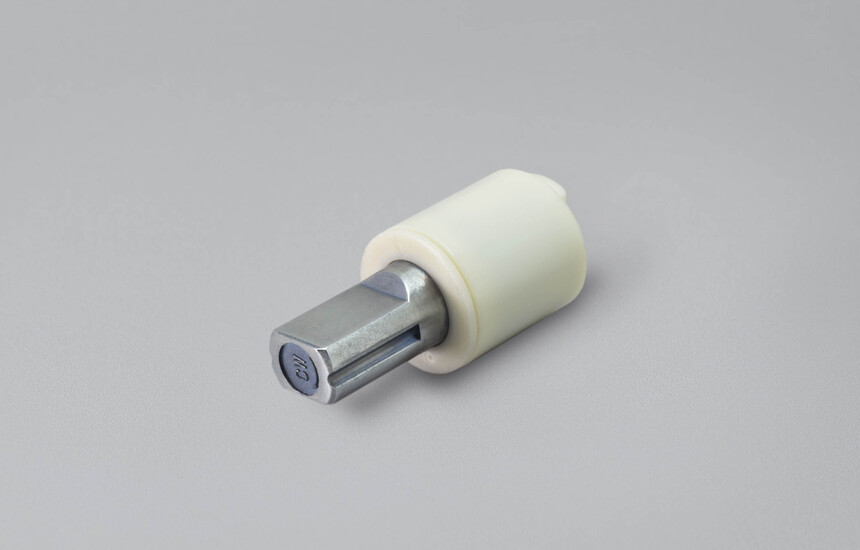

| TD133 |  |
3.0 | 26.55 | φ20 | φ0.787 | 110 | CW or CCW | |

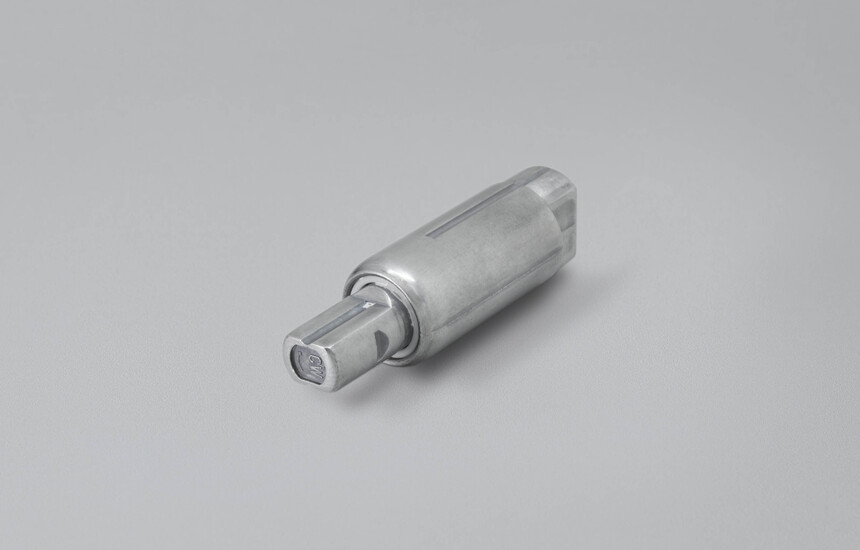

| TD129 |  |
3.5 to 4.0 | 30.98 to 35.40 | φ16 | φ0.630 | 110 | CW or CCW | |

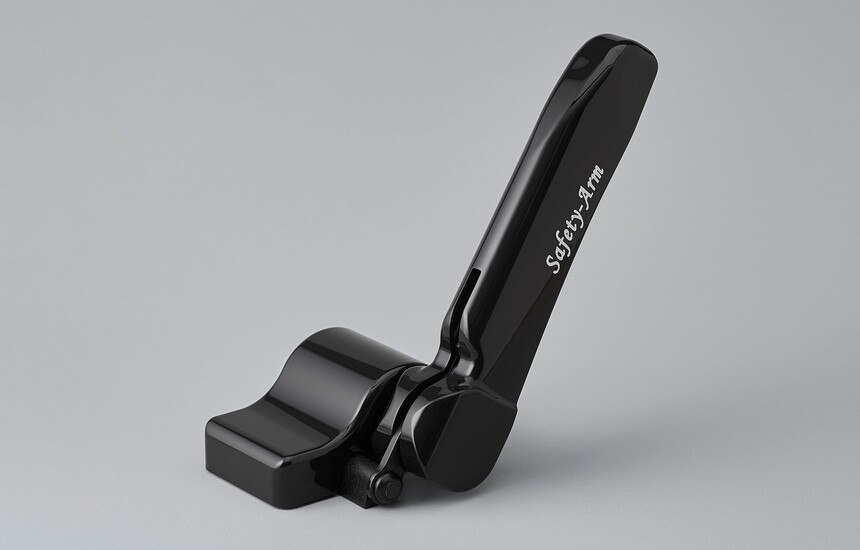

| TD90 |  |
3.5 to 5.0 | 30.98 to 44.25 | - | - | 120 | CCW | |

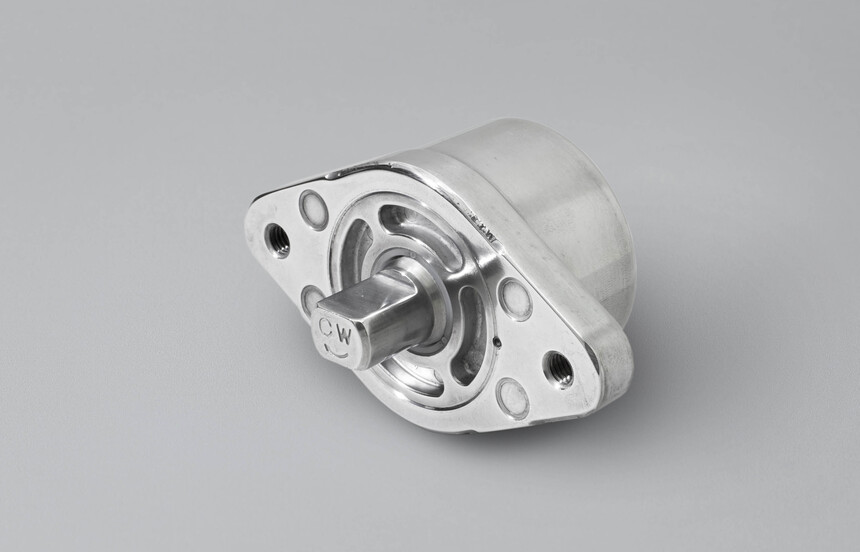

| TD42 |  |
4.9 to 8.8 | 43.37 to 78.15 | φ40.2 | φ1.583 | 120 | CW or CCW | |

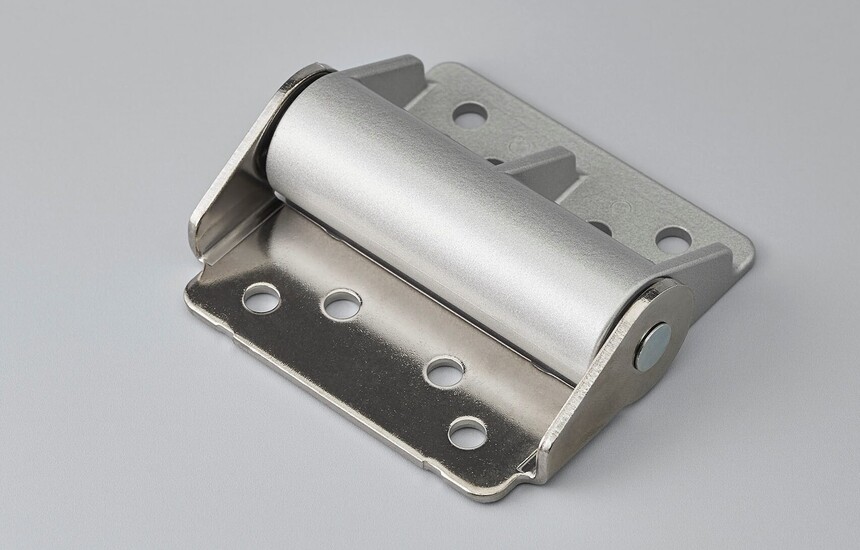

| TD89 |  |
5.0 to 15.0 | 44.25 to 132.76 | Hinge | Hinge | 120 | CW or CCW | |

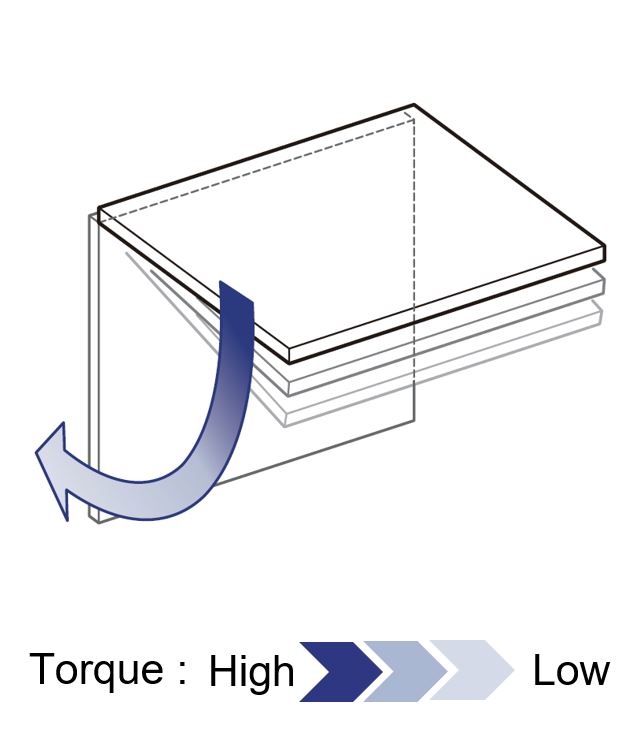

Vertical use type
| TOK Series | Product Image | Torque Size | Dimension | Opening Angle | Direction | CAD Download | 【N･m】 | 【lbf･in】 | 【mm】 | 【in】 | 【°】 |
|---|---|---|---|---|---|---|---|---|

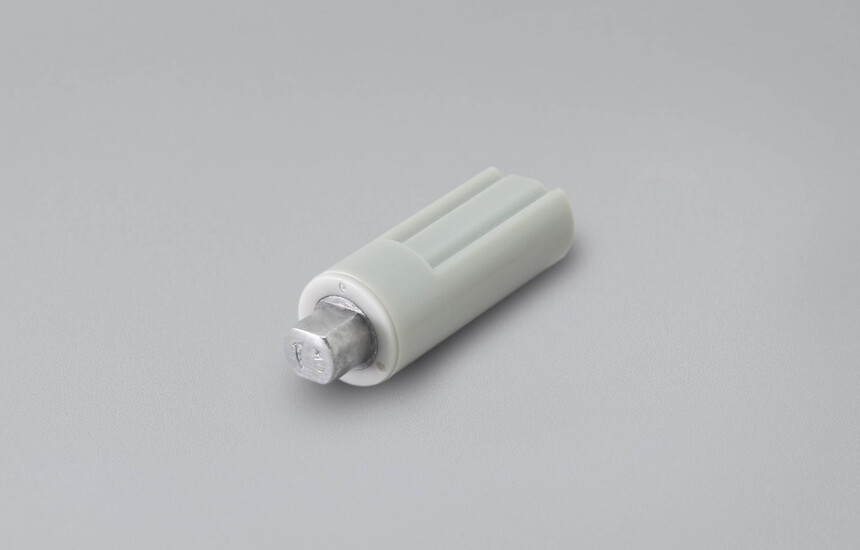

| TD75 |  |
0.1 to 0.3 | 0.89 to 2.57 | φ11 | φ0.433 | 180 | CW or CCW | |

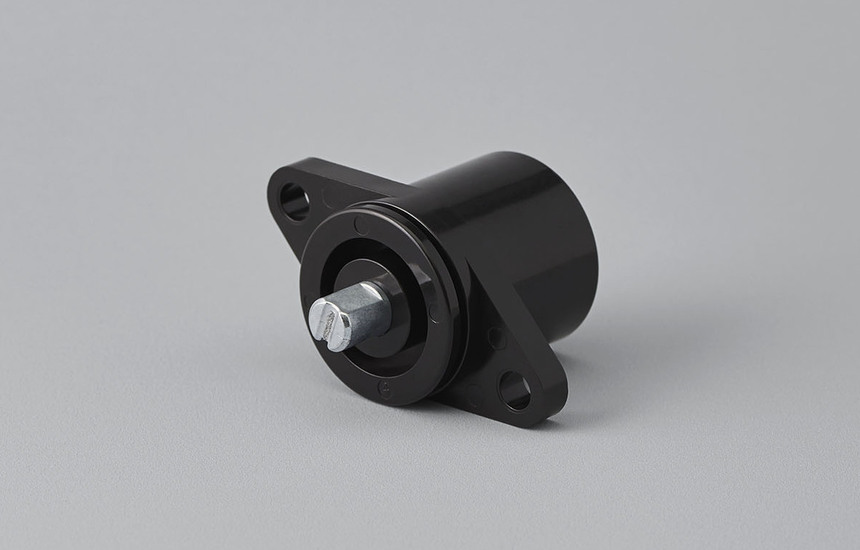

| TD38 |  |
0.2 to 0.6 | 1.33 to 5.22 | φ22 | φ0.866 | 180 | CW or CCW | |

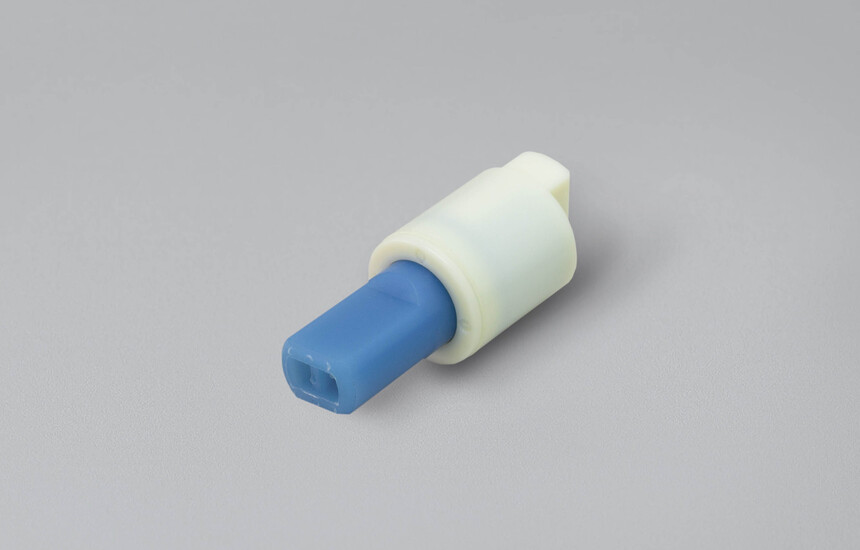

| TD99 Vertical |  |
1.0 to 2.0 | 8.67 to 17.70 | φ18 | φ0.709 | 110 | CW or CCW | |
Horizontal & Vertical use type
| TOK Series | Product Image | Torque Size | Dimension | Opening Angle | Direction | CAD Download | 【N･m】 | 【lbf･in】 | 【mm】 | 【in】 | 【°】 |
|---|---|---|---|---|---|---|---|---|
| TD148 |  |
0.1 to 0.3 | 0.89 to 2.66 | φ11 | φ0.433 | 110 | CW or CCW | |

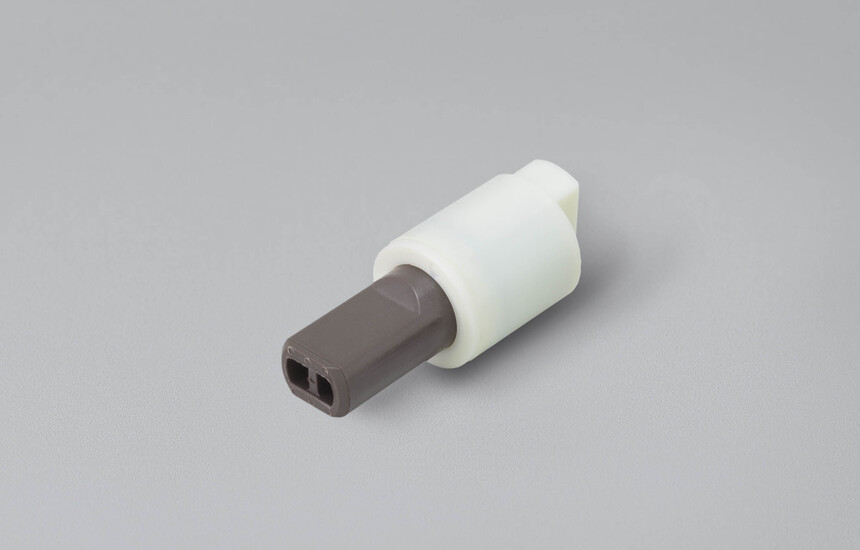

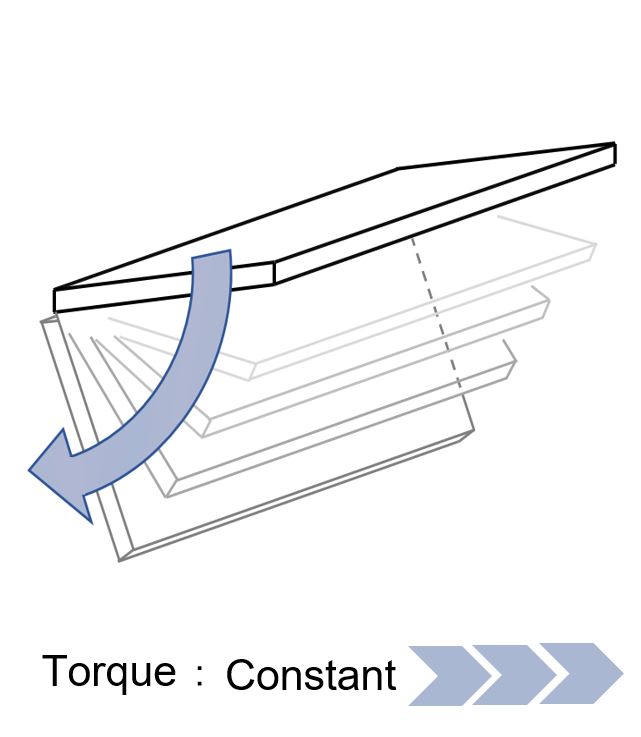

| TD99 H ＆ V |  |
1.0 to 2.0 | 8.85 to 17.70 | φ18 | φ0.709 | 110 | CW or CCW | |

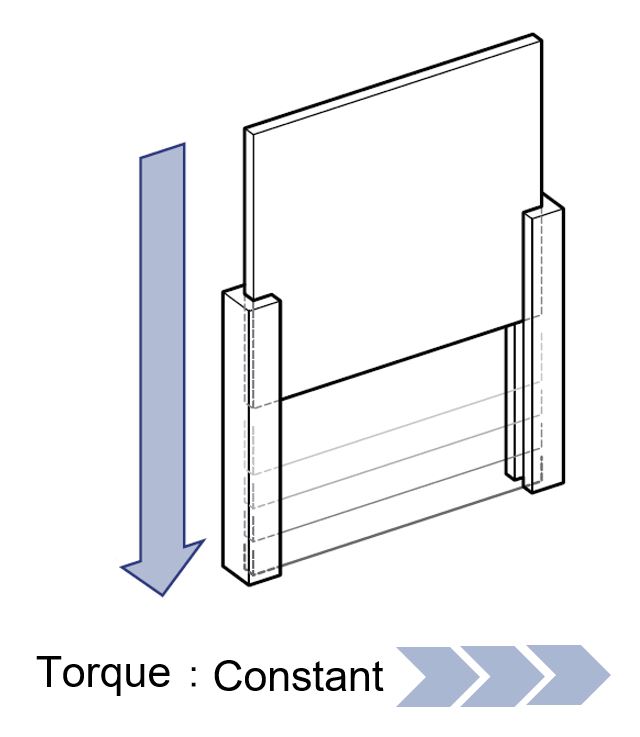

Continuous rotation damper
| TOK Series | Product Image | Torque Size | Dimension | Opening Angle | Direction | CAD Download | 【N･m】 | 【lbf･in】 | 【mm】 | 【in】 | 【°】 |
|---|---|---|---|---|---|---|---|---|

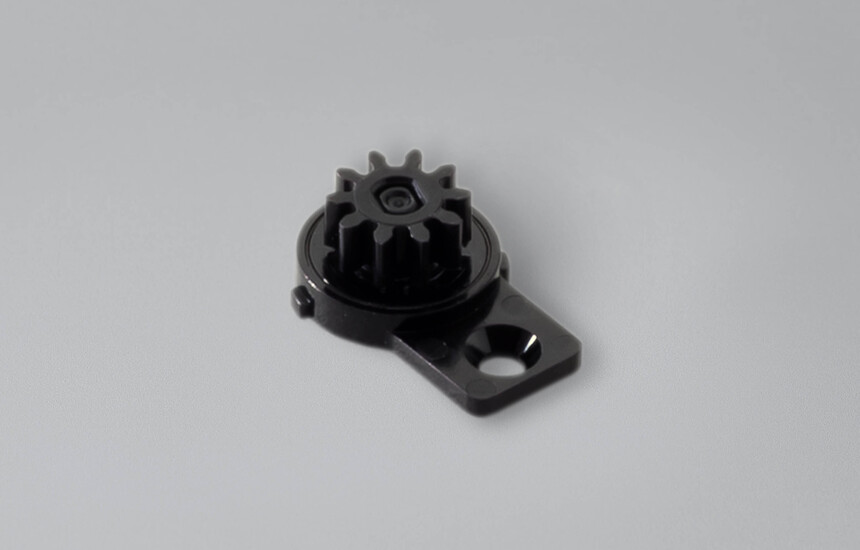

| TD136 |  |
0.002 | 0.018 | φ10 | φ0.394 | 360 | CW & CCW | |

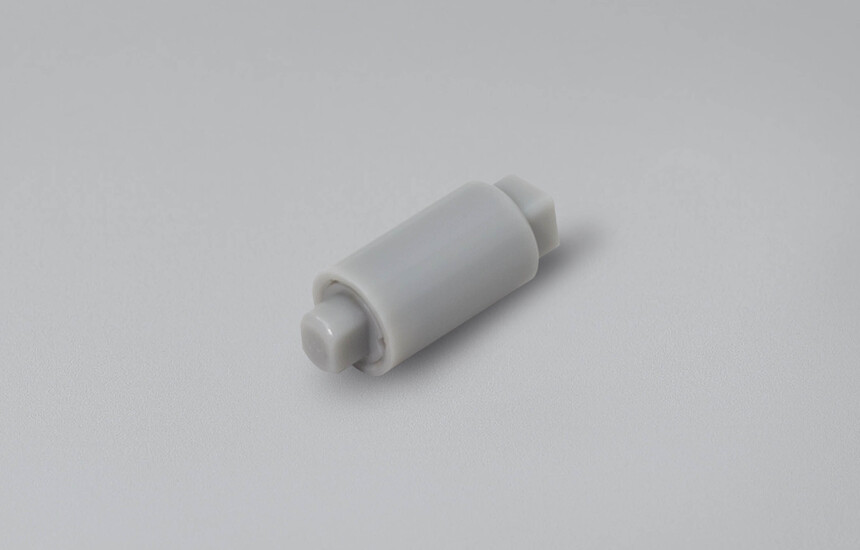

| TD101 |  |
0.0025 to 0.0040 | 0.022 to 0.035 | φ6 | φ0.236 | 360 | CW & CCW | |

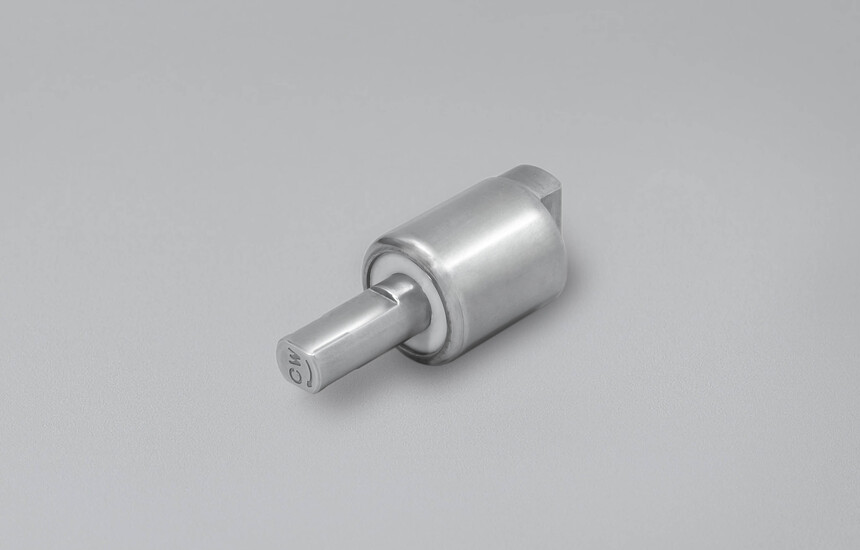

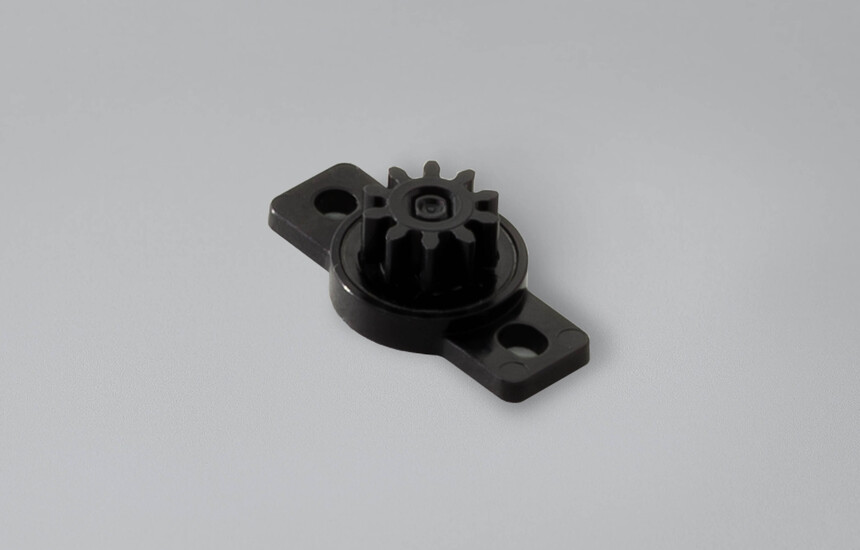

| TD130 |  |
0.004 | 0.035 | φ10 | φ0.394 | 360 | CW & CCW | |

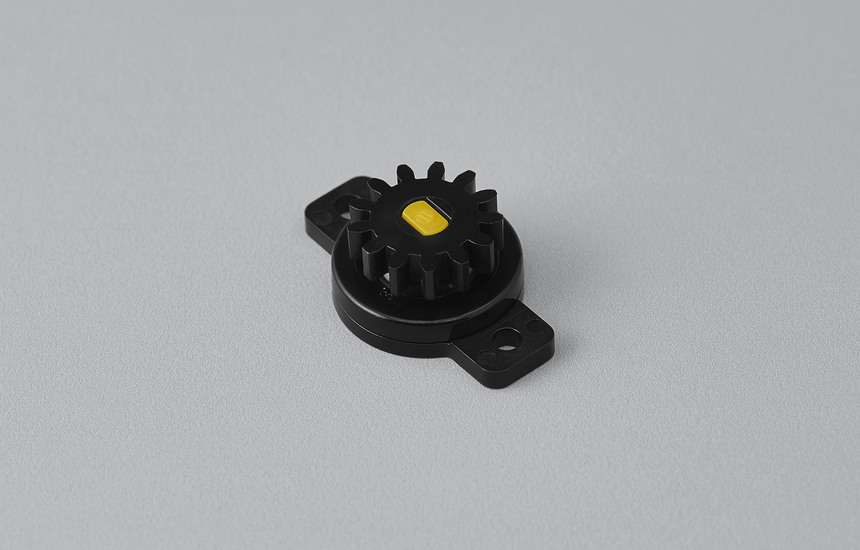

| TD102 |  |
0.0025 to 0.0150 | 0.022 to 0.133 | φ14.9 | φ0.587 | 360 | CW & CCW | |

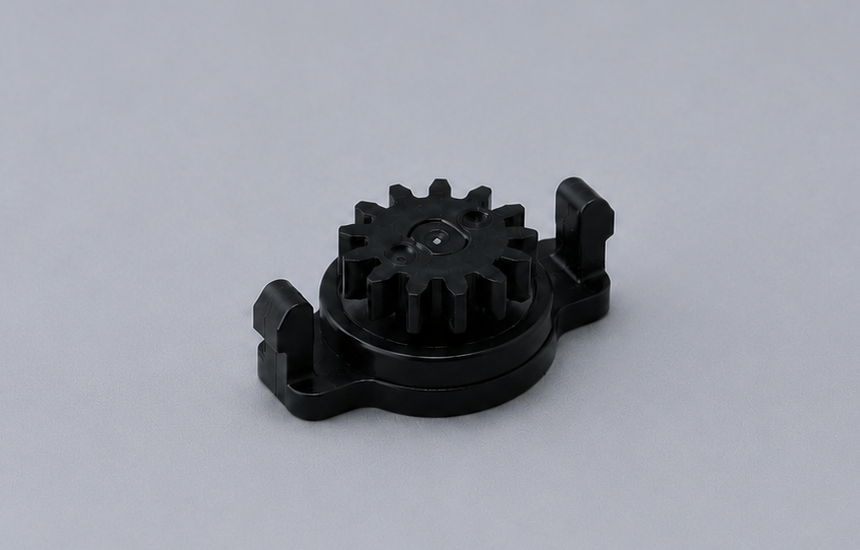

| TD157 |  |
0.014 to 0.021 | 0.12 to 0.19 | φ14.9 | φ0.587 | 360 | CCW |
|

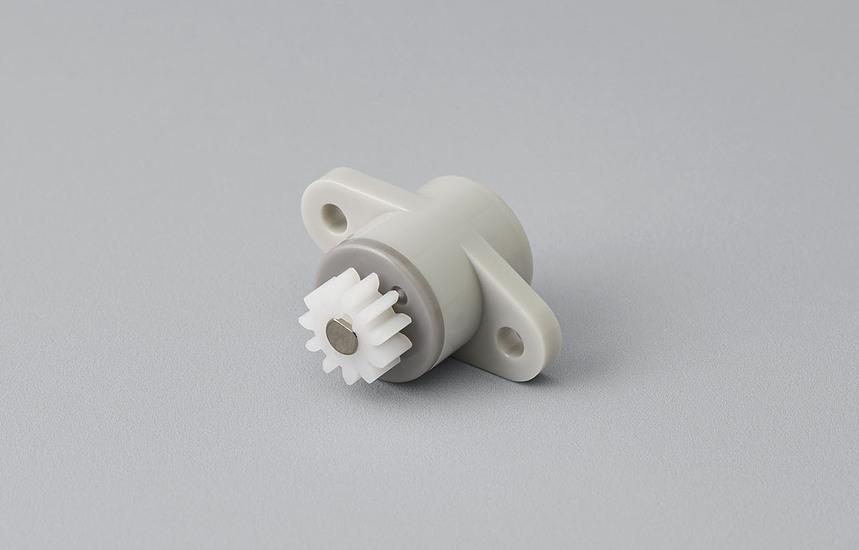

| TD88 |  |
0.01 to 0.04 | 0.09 to 0.35 | φ15 | φ0.591 | 360 | CW or CCW | |

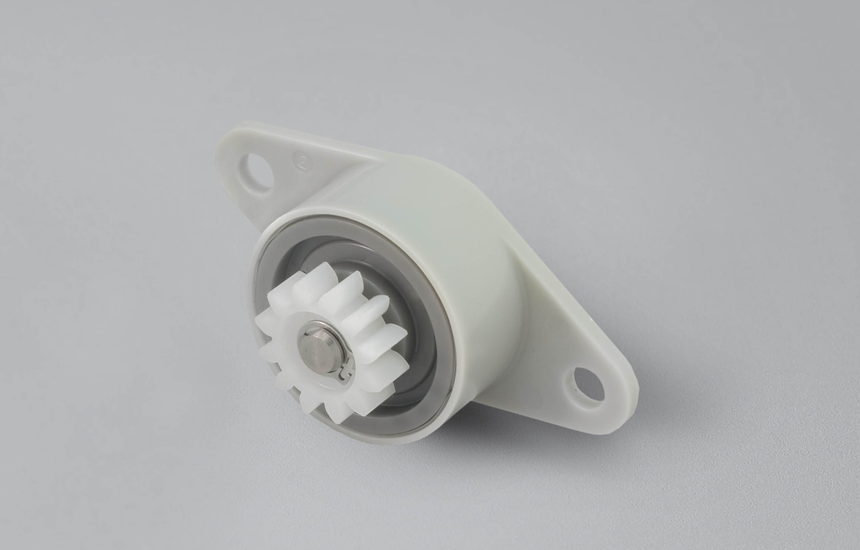

| TD96 |  |
0.05 to 0.15 | 0.44 to 1.33 | φ25 | φ0.984 | 360 | CW or CCW | |

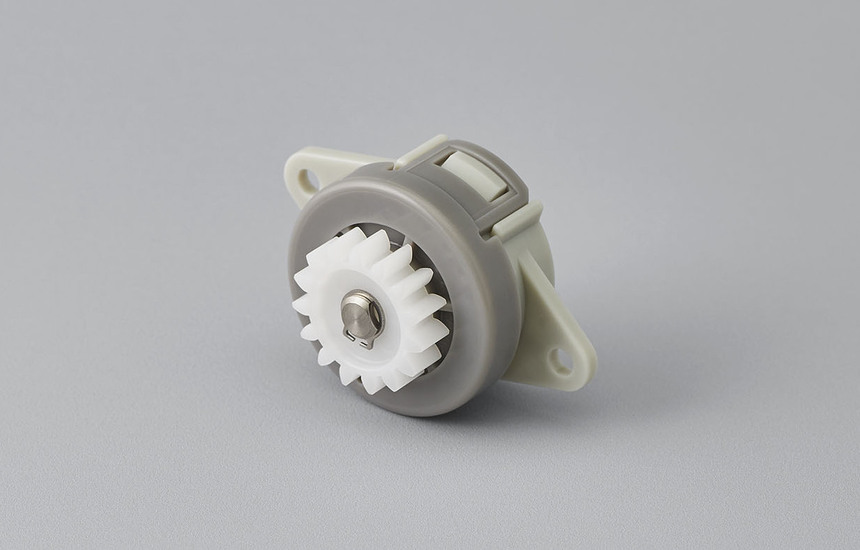

| TD62 |  |
0.03 to 0.20 | 0.27 to 1.77 | φ25 | φ0.984 | 360 | CW or CCW CW & CCW | |

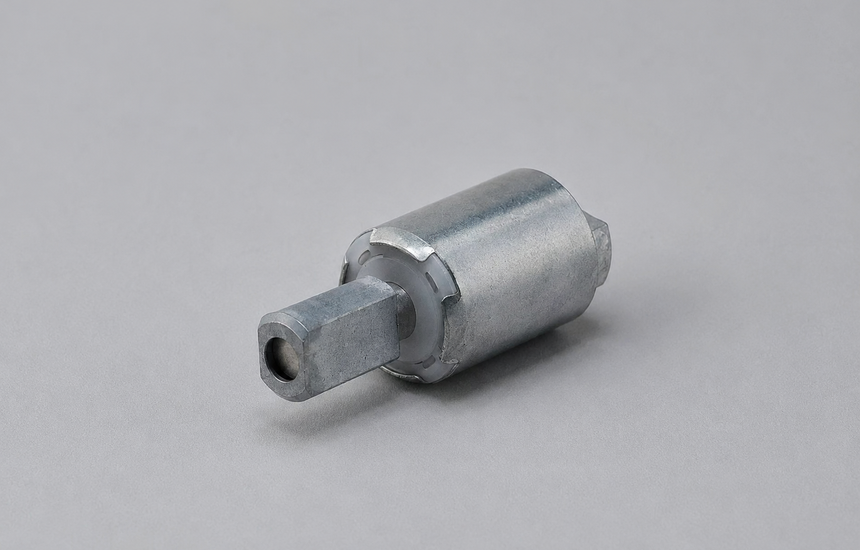

| TD164 |  |
0.50 | 4.425 | φ22 | φ0.866 | 360 | CW |
|

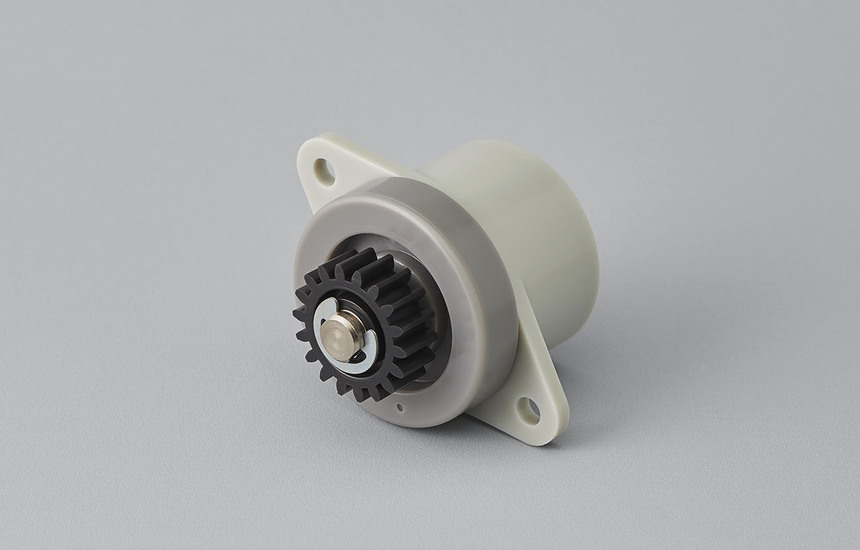

| TD58 |  |
0.30 to 1.60 | 2.66 to 14.16 | φ31 | φ1.220 | 360 | CW or CCW / CW & CCW | |
