SR – Custom Assemble Unit

Application

TOK Product

Key benefits

SRX series

• Easily removable with light force
• Easy Operation with one hand
• One push operation

Via its epoch-making internal structure, this detachable mechanism easily be operated with one hand, and released with a single push. more...

SR2 series

• Raise / lower / stop
• Stops securely at any position
• Compatible with a wide range of torque

The SR2 provides controlled motion to adjust height at any position. You can easily lift heavy objects and lock them precisely into position. more...

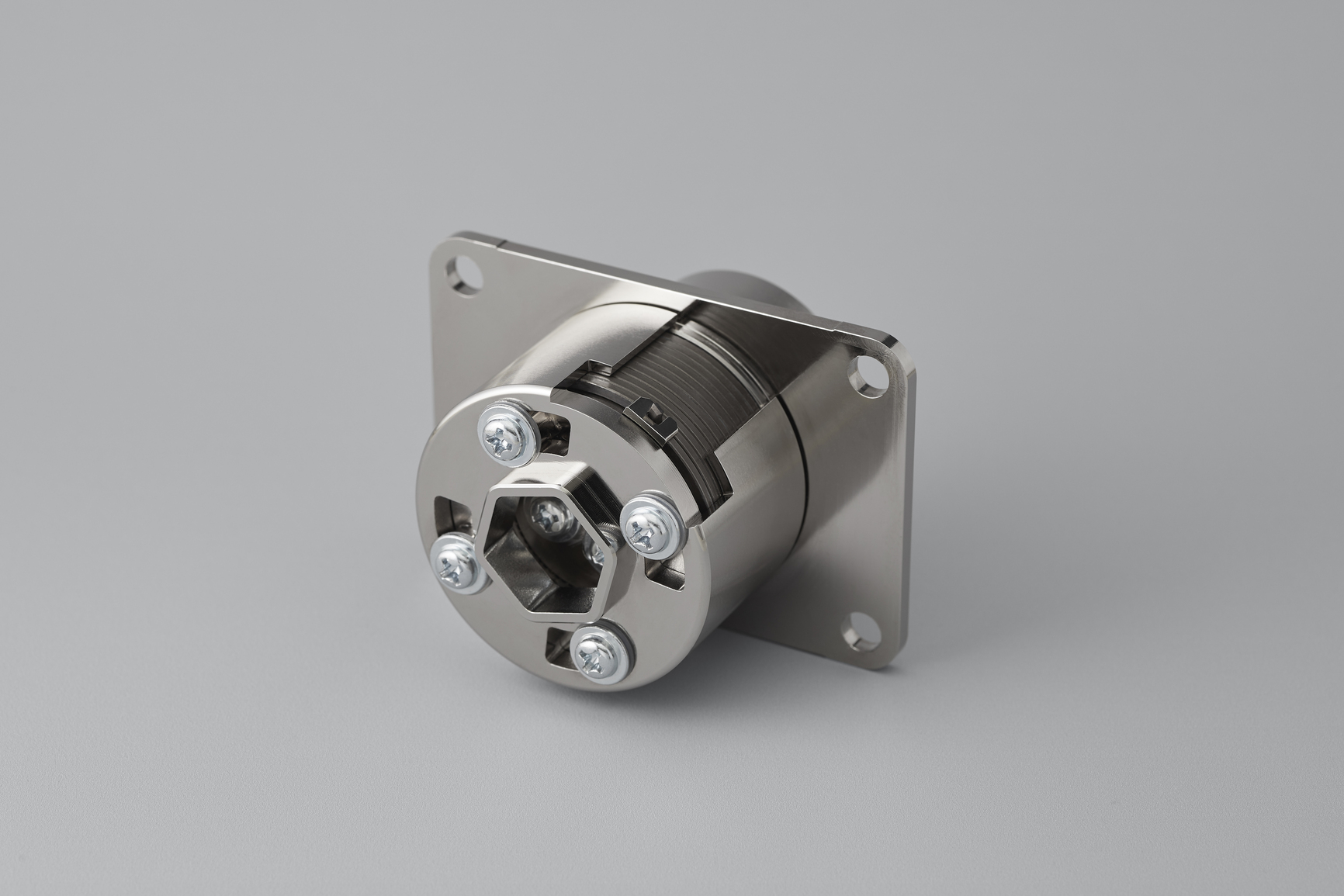

SR12 series

• Raise / lower / stop
• Stops securely at any position
• No power supply / Easy operation
• Ready to install

SR12 series is a high torque clutch that can move your equipment and products smoothly and stop heavy objects at any position. This can handle high torque but can be installed with less space. more...

SR3 series

• High durability (300,000 open / close)
• Torque adjustment type

The closing speed of this damper can be easily adjusted to its controlled closure damper torque. It creates a soft and light movement and adds a luxurious feel to the motion. more...

SR8 series

• safety
• Prevent finger pinching
• No temperature dependence (No oil used)

Under Development / Future product

more...

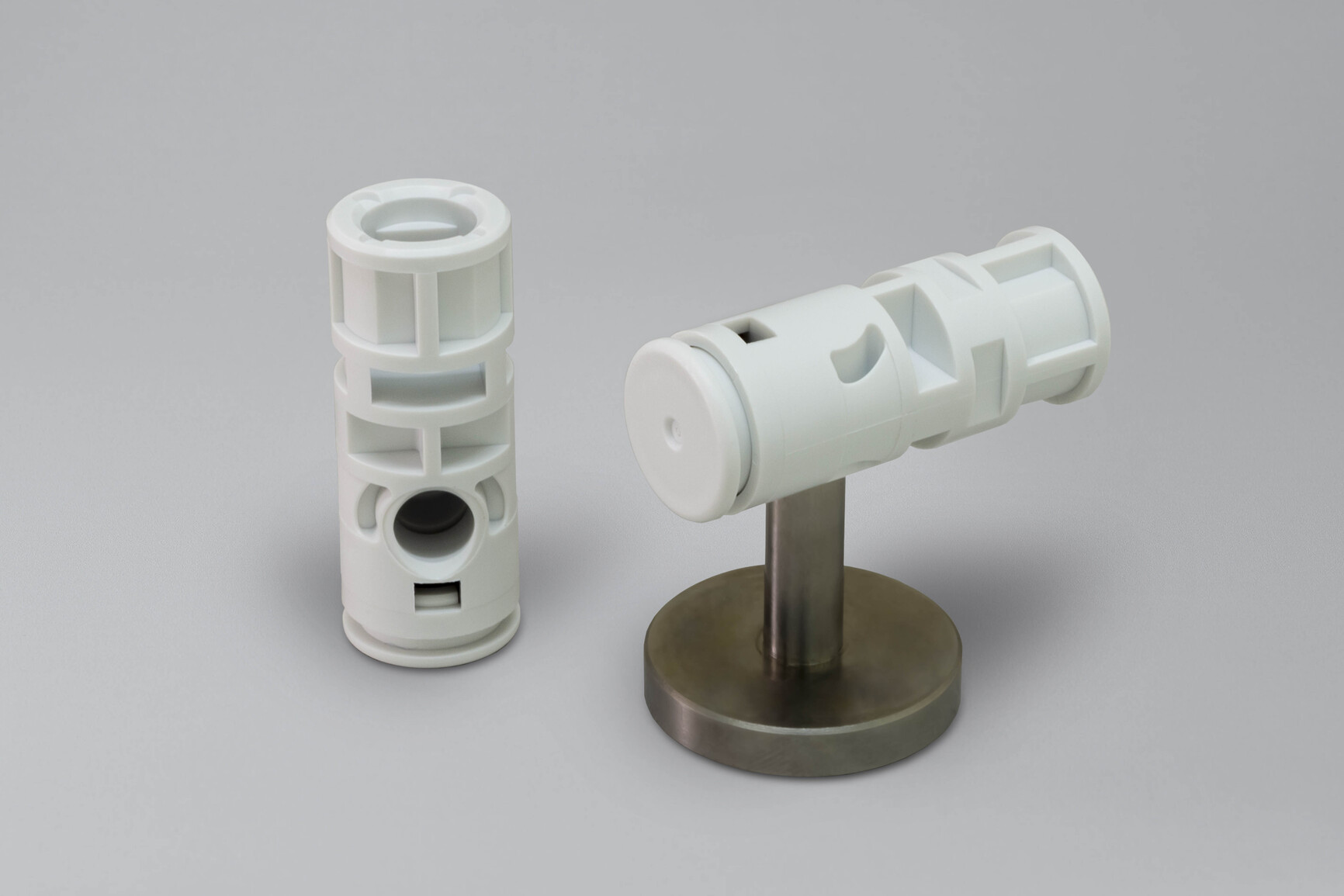

SR14 series

• Easy shaft installation by simple insertion
• Simply press the button to remove the shaft
• Compared to our conventional products
• PBT resin provides excellent chemical resistance

The shaft is held simply by insertion and released by pressing the side button.By integrating with the TOK TD100 Series rotary damper to add a slowdown mechanism, it becomes a compact mechanical component combining soft-close and detachable functions. more...

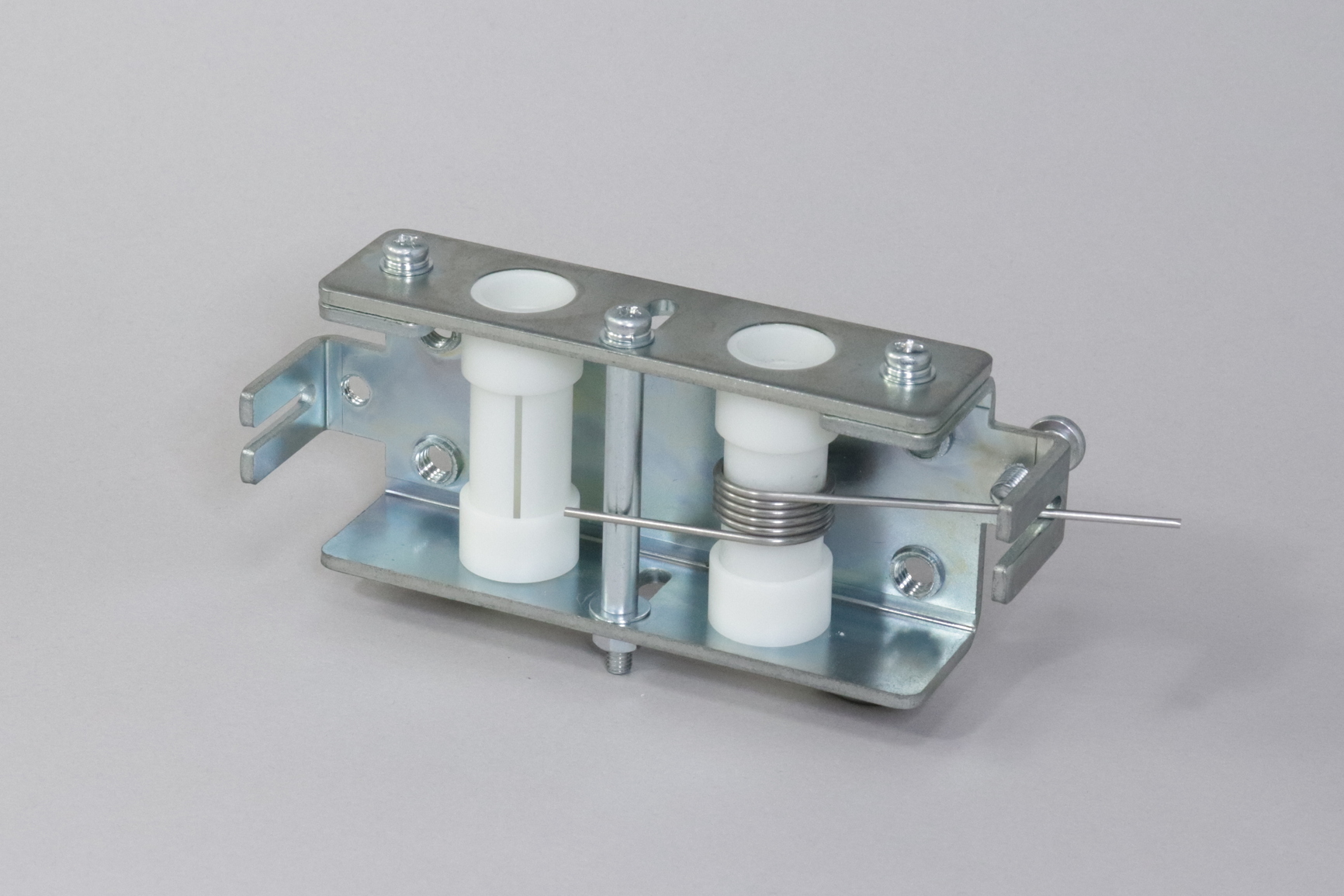

SR15 series

• Linear motion with frictional resistance
• Position fixed by friction; self-lubricating resin requires no maintenance.
• Frictional resistance can be adjusted(by operating the adjustment screw)
• No fixing work such as screw fastening is required
• Uses two shafts(One shaft is for preventing rotation)
• A lock release button can be added (optional)

We have developed a linear component, the linear torque limiter, by applying the technology of
our conventional rotary torque limiter. When the shaft is inserted, a constant frictional force is applied, allowing fixing at any desired position for both vertical and horizontal sliding.
Since the frictional resistance can be adjusted using a screw, it is possible to set the desired resistance feeling.more...

SR1

• Slow movement
• Safety

Note: Custom product! !

Deceleration descent function of high-grade blinds that slowly descend at a constant speed until the end

SR5

• Reliable retraction
• Shock mitigation

Note: Custom product! !

Corresponding to the new design of the entire soft closing unit can be deployed not only for multi-function devices, but also for all types of service

SR11

• Easy operation
• High torque compatible

Note: Custom product! !

Similar to SR2 based on customer's request to stop roof rack at any position
