Axial Rotary Dampers

Axial Damper - Partial Angle



TD99

TOK Series Torque Size Dimension
TD73 0.10 ~ 0.29 Nm φ11
TD75 0.10 ~ 0.29 Nm φ11
TD38 0.15 ~ 0.59 Nm φ22
TD27 0.49 ~ 1.96 Nm φ22
TD14 0.98 ~ 1.96 Nm φ18
TD60 0.98 ~ 1.96 Nm 11.9mm wide
TD56 1.47 ~ 2.94 Nm φ18
TD69 1.96 ~ 3.43 Nm φ20
TD22 2.45 ~ 3.92 Nm φ16.2
TD42 4.90 ~ 8.83 Nm φ40.2
TD89 10 Nm Hinge
TD99 0.98 ~ 1.96 Nm φ18
TD100 0.98 ~ 2.94 Nm φ16
TD112 0.45 ~ 2.94 Nm φ18
TD118 3.5 Nm φ18
TD129 4.0 Nm φ16

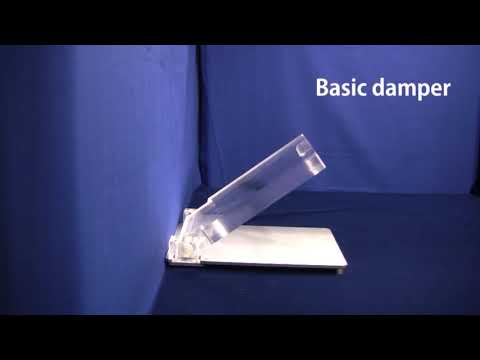

<Video Sample >

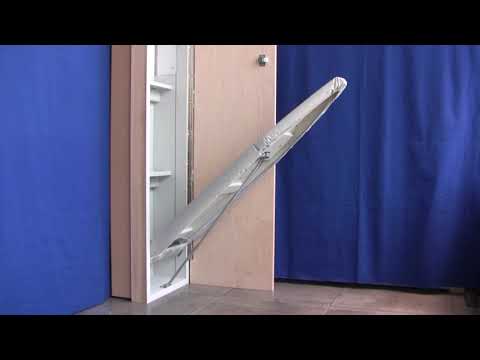

Soft Closing for Iron Board
